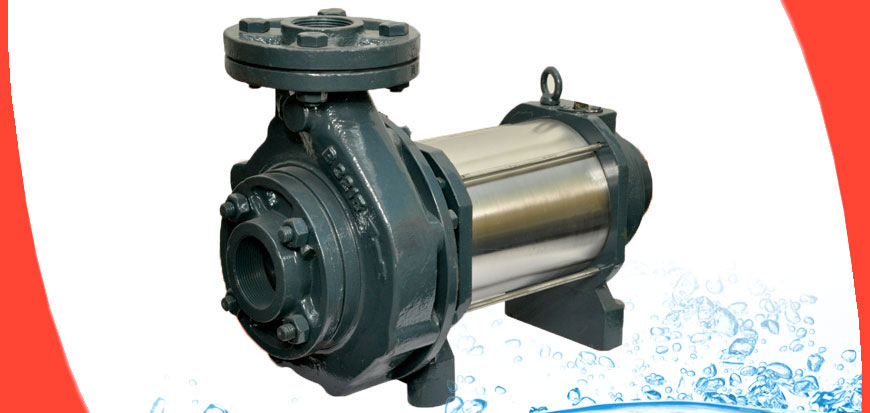

+(91)-98240 12289HORIZONTAL MONOSET
PRODUCT DESCRIPTION
Kaizen Electricals Private Limited Horizontal & Vertical monoset are well known for its quality, reliability & excellence for all type of service purpose. Silent Features of Kaizen Electricals Private Limited : Low power consumption, Complete absence of suction trouble, Vibration free, Noise free, High Discharge.
APPLICATION
- Domestic
- Sprinkler Irrigation
- Seed Farms & Nurseries
- Housing, Complex & Cooling System
- Commercial & Industrial Purpose & etc.
- Kaizen Electricals Private Limited Horizontal Openwell 2880 RPM CONFIRM TO IS: 14220
MATERIAL OF CONSTRUCTION - PUMP
| Part Name | Material |
| Motor Frame | S.S/M.S sheet |
| Pump Casing | C.I |
| Impeller | SS/CI |
| Shaft | SS 410 |
| Journal Bush | Leaded Bronze |
| Thurst Base Assembly | SS 410 & Graphite Carbon |
SPECIFICATION
| Details | Horizontal |
| Power Range | 0.5 HP to 3 HP- 1 ph 1 HP to 10 HP-3 ph |
| Version | 200-240V,AC.50 Hz-1 ph. 380-415V,AC.50 Hz-3 ph |
| Speed | 2880 rpm |
| Flow rate | 20 lpm to 700 lpm |
| Total Head Range | 12 mtrs to 62 mtrs |
| Outlet size in inch/mm | 25,40,50,65,75 mm |
| Type of Duty | S1(Continues) |
| Maximum starts per hour | 12 times |
| Method of starting | Control Unit- 1 ph DOL/star Delta-3 ph |
PUMPS LIQUIDS
Clean, thin, non-aggresive, non-explosive, clear, cold fresh water without abresives, solid particle or fibres.
