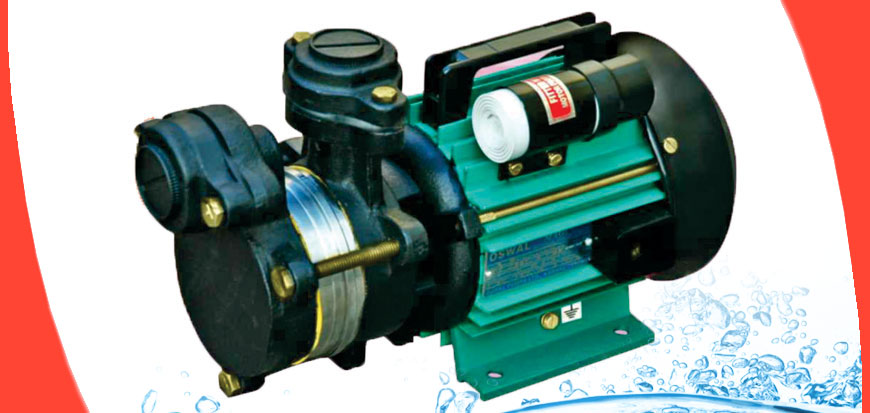

Kaizen Electricals Private Limited have excellent design gives higher discharge & head due to efficient motor, extreme care has taken for selection of stator, rotor, winding wire & bearing. Silent Features of Kaizen Electricals Private Limited : Highly efficient, Low power consumption, Vibration free, Noiseless, Completely absence of suction trouble.IS: 8472
| Part Name | Material |
| Pump Casing | Cast iron |
| Motor Frame | Alluminium Alloy / Cast Iron |
| Impeller | Bronze/S.S |
| Shaft | SS 410 / E.N. 8 |
| Sealing | Mechanical Seal(Carbon & Ceramic) |
| Details | Activa / Exclusive/Magic |
| Power Range | 0.5 HP, & 1HP. |
| Speed | 2880 rpm |
| Version | 220-240V, 50 Hz, A.C-1 Ph. Permanent Split Capacitor (PSC) Incorporated with Thermal Overload Protector |
| Type of duty | S1 (Continous) |
| Degree Of Protection | IP 54 |
| Class of Insuation | ‘B’ |
| Self-Priming Capacity | 15ft |
| Suction lift upto | 25ft |
| Normal Suction x delivery size in inches | 1 x 1 |
| Model | H.P. | Delv. size in MM | Total Head In Meters | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Meters | 4 | 8 | 12 | 16 | 20 | 24 | 28 | 32 | 36 | 40 | 44 | 48 | 52 | ||||
| Mini Activa – 3 | 0.5 | 25 X 25 | 1480 | 1080 | 700 | 360 | 120 | ||||||||||
| Active – 1 | 0.5 | 25 X 25 | 1500 | 1200 | 1020 | 780 | 480 | 300 | |||||||||
| Exclusive | 0.5 | 25 X 25 | 1560 | 1260 | 1080 | 840 | 540 | 360 | 120 | ||||||||
| Maxi Flow | 1.1 | 25 X 25 | 1700 | 1560 | 1260 | 1080 | 840 | 540 | 360 | 120 | |||||||
| Activa 1 HP | 1 | 25 X 25 | 1620 | 1380 | 1320 | 1020 | 840 | 480 | 240 | ||||||||
| Exclusive 1 HP | 1 | 25 X 25 | 1740 | 1500 | 1440 | 1140 | 960 | ||||||||||
| Magic – 1 | 0.5 | 25 X 25 | 1740 | 1080 | 1020 | 900 | 840 | 300 | |||||||||
| Magic – 2 | 1 | 25 X 25 | 1380 | 1200 | 1140 | 1020 | 900 | 780 | |||||||||
Clean, thin, non-aggresive, non-explosive, clear, cold fresh water without abresives, solid particle or fibres.
