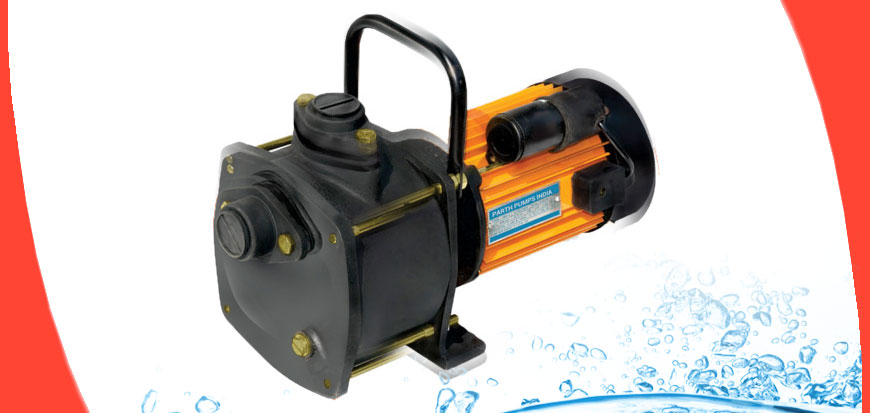

+(91)-98240 12289SHALLOW WELL PUMP
PRODUCT DESCRIPTION
Kaizen Electricals Private Limited Regenerative self priming monoblock pumpset are of good selfpriming capacity, dynamically balanced rotating parts, optimal design, High operating efficiency, high working pressure and designed for wide voltage fluctuations Application of Regenerative sefpriming monoblock pumpset : Hospitals, Water circulation systems, Water supply systems of Gardening, Nurseries, Domestic water supply, Multi-storeyed building & Industries REGENERATIVE SELF PRIMING MONOBLOCK PUMPSETS 2880 RPM CONFIRM TO IS: 8472
APPLICATION
- Domestic
- Sprinkler Irrigation
- Seed Farms & Nurseries
- Housing, Complex & Cooling System
- Commercial & Industrial Purpose & etc.
- Kaizen Electricals Private Limited Horizontal Openwell 2880 RPM CONFIRM TO IS: 14220
MATERIAL OF CONSTRUCTION
| Part Name | Material |
| Pump Casing | Cast Iron |
| Motor Frame | Alluminium Alloy / Cast Iron |
| Impeller | Bronze/S.S |
| Shaft | SS 410 / E.N. 8 |
| Sealing | Mechanical Seal(Carbon & Ceramic) |
SPECIFICATION
| Details | Activa / Exclusive / Magic |
| Power Range | 0.5 HP, & 1HP. |
| Version | 220-240V, 50 Hz, A.C-1 Ph. Permanent Split Capacitor (PSC) Incorporated with Thermal Overload Protector |
| Speed | 2880 rpm |
| Type of duty | S1 (Continous) |
| Degree Of Protection | IP 54 |
| Class of Insuation | ‘B’ |
| Suction lift upto | 25ft |
| Normal Suction x delivery size in inches | 1 x 1 |
PERFORMANCE
| Model | H.P. | Delv. size in MM | Total Head In Meters | ||||||||||
| Meters | 4 | 8 | 12 | 16 | 20 | 24 | 28 | 32 | 36 | 40 | |||
| Shallow-Well 0.5 | 0.5 | 25 X 25 | 2820 | 2760 | 2700 | 2340 | 1680 | 1080 | 540 | 180 | |||
| Shallow-Well 1 | 1 | 25 X 25 | 3480 | 3180 | 3060 | 2640 | 2040 | 1560 | 960 | 600 | 360 | 120 | |
| OMS 0.5 | 0.5 | 25 X 25 | 2880 | 2280 | 2100 | 1800 | 1200 | 900 | 480 | ||||
| OMS 1 | 1 | 25 X 25 | 3600 | 3300 | 3120 | 2880 | 2700 | 2100 | 1800 | 1200 | |||
