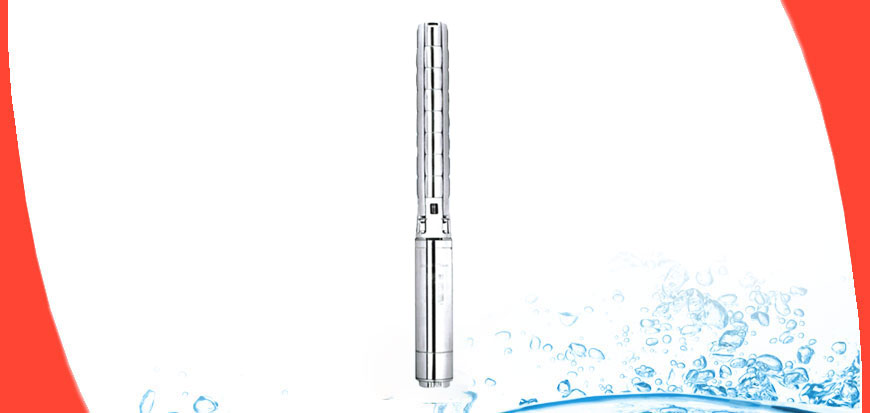

+(91)-98240 12289SOLAR AC SUBMERSIBLE PUMPS
PRODUCT DESCRIPTION
Kaizen Electricals Private Limited Solar Pumps are designed to work on solar energy. These pumps are specially designed for Agricultural, Residential, Commercial and Industrial purposes. Controller harness maximum DC power from photo voltaic panel through “Maximum Power Point Tracking” and feed to highly efficient motor which drive a centrifugal pumpset.
FEATURES & BENIFITS
-
-
- Highly energy efficient submersible solar water pump with energy efficient inverter duty motor
- High efficiency solar photovoltaic panels with a service life of minimum 20 years
- Robust design Galvanized steel mounting structure for long life
- High technology automatic controller with dynamic MPPT(maximum power point tracking) control method.
- The controller offers complete protection against under and over voltage and dry run protection for the pump
- Highly efficient controller with a conversion efficiency of 98%
- The controller is tropicalized to operate satisfactorily with an ambient temperature of up to 50°C
- Virtually no maintenance cost
- Environmentally friendly air and noise pollution free solution
-
APPLICATION
-
-
- Flood irrigation of small fields
- Drip irrigation for farms
- Cattle watering
- Water supply for small villages, schools, hospitals and homes
-
TECHNICAL SPECIFICATION
| Model | H.P | HEAD Mtr. | DIS. LPD | Outlet Size(mm) | PV Array min.watts | Motor Voltage (V) | Speed (RPM) |
| PSA09SP03 | 1 | 30 | 20000 | 40 | 900(300×3) | 3Ø 90V | 2850 |
| PSA09SP02 | 1 | 60 | 10000 | 32 | 900(300×3) | 3Ø 90V | 2850 |
| PSA09SP01 | 1 | 90 | 5000 | 32 | 900(300×3) | 3Ø 90V | 2850 |
| PSA12SP08 | 1 | 20 | 54000 | 50 | 1200(300×4) | 3Ø 110V | 2850 |
| PSA12SP05 | 1 | 30 | 38400 | 40 | 1200(300×4) | 3Ø 110V | 2850 |
| PSA12SP03 | 1 | 50 | 22800 | 40 | 1200(300×4) | 3Ø 110V | 2850 |
| PSA12SP02 | 1 | 70 | 12600 | 32 | 1200(300×4) | 3Ø 110V | 2850 |
| PSA18SP09 | 2 | 20 | 81000 | 50 | 1800(300×6) | 3Ø 160V | 2850 |
| PSA18SP08 | 2 | 30 | 57600 | 50 | 1800(300×6) | 3Ø 160V | 2850 |
| PSA18SP05 | 2 | 50 | 34200 | 40 | 1800(300×6) | 3Ø 160V | 2850 |
| PSA18SP03 | 2 | 70 | 23400 | 40 | 1800(300×6) | 3Ø 160V | 2850 |
| PSA30SP17 | 3 | 20 | 135000 | 65 | 3000(300×10) | 3Ø 230V | 2850 |
| PSA30SP09 | 3 | 30 | 96000 | 50 | 3000(300×10) | 3Ø 230V | 2850 |
| PSA30SP09 | 3 | 50 | 57000 | 50 | 3000(300×10) | 3Ø 230V | 2850 |
| PSA30SP05 | 3 | 70 | 39000 | 40 | 3000(300×10) | 3Ø 230V | 2850 |
| PSA30SP05 | 3 | 100 | 25500 | 40 | 3000(300×10) | 3Ø 230V | 2850 |
| PSA48SP46 | 5 | 20 | 216000 | 75 | 4800(300×16) | 3Ø 380V | 2850 |
| PSA48SP30 | 5 | 30 | 153600 | 65 | 4800(300×16) | 3Ø 380V | 2850 |
| PSA48SP17 | 5 | 50 | 91200 | 65 | 4800(300×16) | 3Ø 380V | 2850 |
| PSA48SP09 | 5 | 70 | 62400 | 50 | 4800(300×16) | 3Ø 380V | 2850 |
| PSA48SP08 | 5 | 100 | 40800 | 50 | 4800(300×16) | 3Ø 380V | 2850 |
