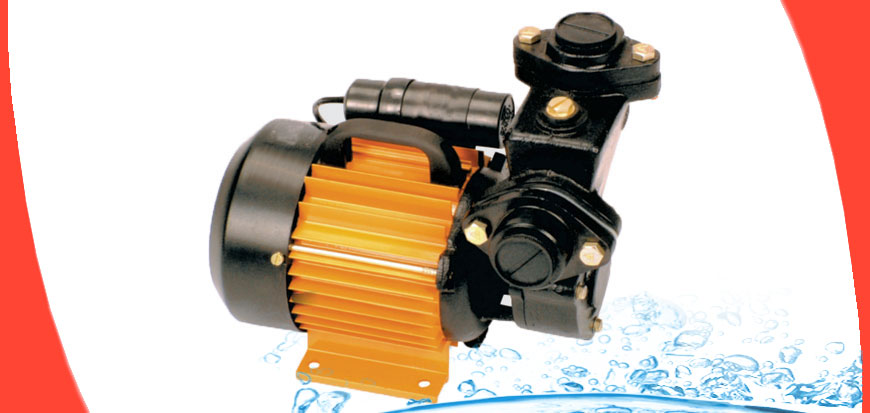

Sele Priming Suction

Contact Us


PRODUCT DESCRIPTION

Kaizen Electricals Private Limited have excellent design gives higher discharge & head due to efficient motor, extreme care has taken for selection of stator, rotor, winding wire & bearing. Silent Features of Parth : Highly efficient, Low power consumption , Vibration free, Noiseless, Completely absence of suction trouble.IS: 8472

APPLICATION

  • Drip Irrigation
  • Sprinkler Irrigation
  • Seed Farms & Nurseries
  • Domestic water Supply
  • Commercial & Industrial Purpose & etc.

MATERIAL OF CONSTRUCTION

Part Name Material
Pump Casing Cast Iron
Motor Frame Alluminium Alloy / Cast Iron
Impeller Bronze/S.S
Shaft SS 410 / E.N. 8
Sealing Mechanical Seal(Carbon & Ceramic)

SPECIFICATION

Details Activa / Exclusive / Magic
Power Range 0.5 HP, & 1HP.
Version 220-240V, 50 Hz, A.C-1 Ph. Permanent Split Capacitor (PSC) Incorporated with Thermal Overload Protector
Type of duty S1 (Continous)
Class of Insuation ‘B’
Suction lift upto 25ft
Normal Suction x delivery size in inches 1 x 1

PERFORMANCE

Model H.P. Delv. size in MM Total Head In Meters
Meters 4 8 12 16 20 24 28 32 36 40 44 48 52
Mini Activa – 3 0.5 25 X 25 1480 1080 700 360 120
Active – 1 0.5 25 X 25 1500 1200 1020 780 480 300
Exclusive 0.5 25 X 25 1560 1260 1080 840 540 360 120
Maxi Flow 1.1 25 X 25 1700 1560 1260 1080 840 540 360 120
Activa 1 HP 1 25 X 25 1620 1380 1320 1020 840 480 240
Exclusive 1 HP 1 25 X 25 1740 1500 1440 1140 960
Magic – 1 0.5 25 X 25 1740 1080 1020 900 840 300
Magic – 2 1 25 X 25 1380 1200 1140 1020 900 780

PUMPS LIQUIDS

Clean, thin, non-aggresive, non-explosive, clear, cold fresh water without abresives, solid particle or fibres.
